Features
- Automatic blade braking system
- Versatile, can perform crosscuts, bevel cuts, miter cuts and swivel to a rip position to cut
- Positive stops at 22.5˚, 45˚ and 90˚
-
Two 4" dust chute
-
Adjustable return spring retracts motor and carriage
Specifications

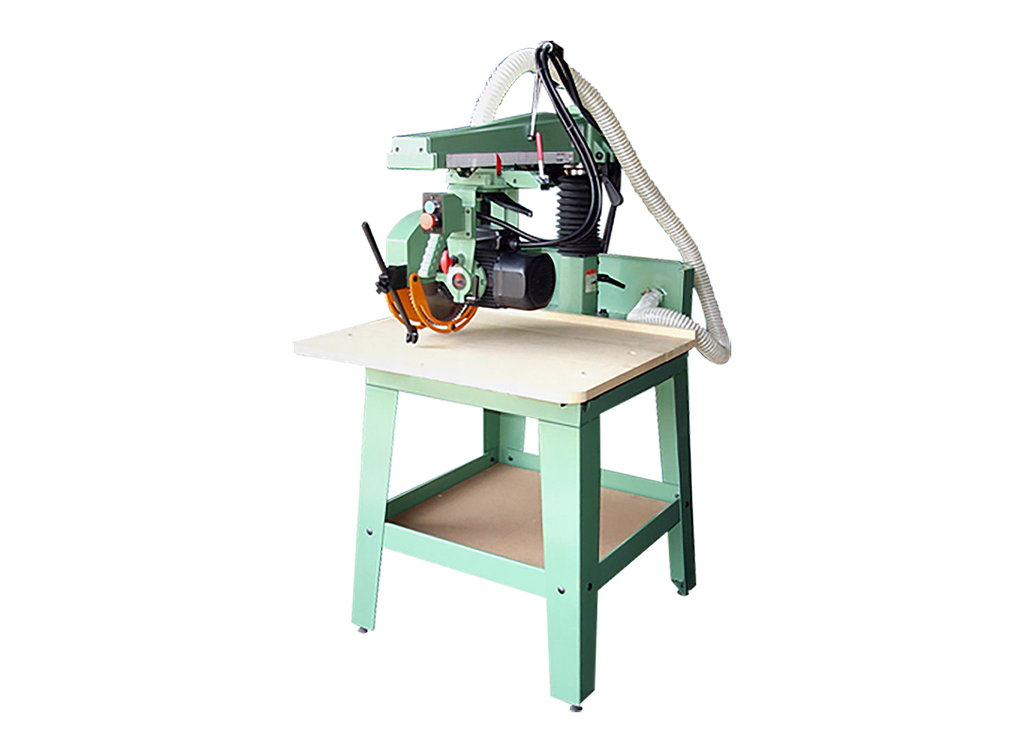

| 12" Radial Arm Saw | ||
| Blade Diameter | 12 in (305 mm) | |
| Blade Arbor | 5/8 in (15.875 mm) | |
| Maximum Depth of Cut | 3 in (76 mm) | |
| Maximum Depth of Cut at 45 ˚ | 3 in (76 mm) | |
| Maximum Crosscut Capacity | 16 in (406 mm) | |
| Maximum Rip Capacity | 26-3/8 in (670 mm) | |
| MDF Table Size | 35-3/8 x 27-1/2 in (900 x 700 mm) | |
| Height of Table | 36-3/4 in (935 mm) | |
| Horsepower | 2 HP | |
| Phase | Single | |
| Voltage | 220 V | |
| Motor Speed | 3400 RPM | |
| Running Amps | 8.5 A | |
